DirectTranslator is a professional conversion tool based on Elysium's ASFALIS technology. It can easily convert 3D data. Users can convert various data formats through a simple and easy-to-use interface.

1、Users can realize high quality CAD data conversion through simple operation

DirectTranslator is the best choice for users to convert CAD data accurately and efficiently. Its desktop design and user interface is simple and practical. It is supported by ASFALIS, ASFALIS is a scalable high-end solution that meets various needs and provides high-precision data conversion, including PMI conversion of product manufacturing information.

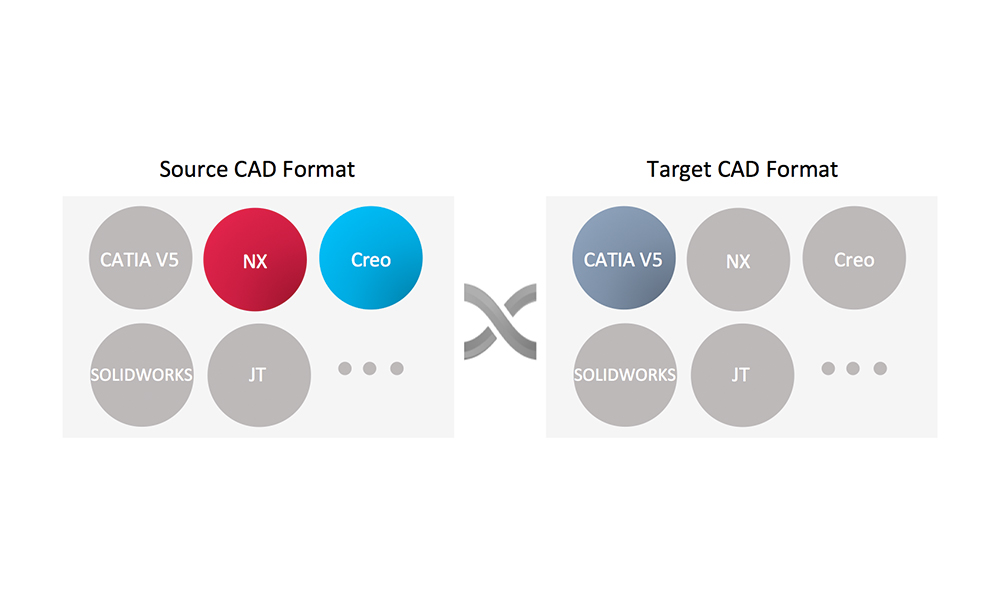

2、Flexible selection of CAD formats for importing and exporting data as needed

DirectTranslator supports a variety of CAD formats. Each CAD option for exporting and importing data can be used separately. Users can choose the CAD format for exporting and importing data according to their needs.

3、DirectTranslator is used in two ways

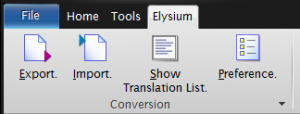

Use directly from the CAD user interface: Run data conversion from import/export commands embedded in the CAD system, which is available in CATIA V5, Creo Parametric, NX and SOLID WORKS.

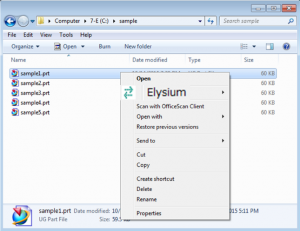

Use from Windows Explorer: Simply right-click the CAD file in Windows Explorer, and then run the data conversion from the context menu. At the same time, you can check the conversion progress and open the conversion result file from the status window.

4、Simple and Easy User Experience

DirectTranslator is easy to set up and automatically detects the CAD system from the registry when it is installed. The user only needs to select the CAD version to be used in the dialog box. It also has an easy-to-use parameter settings dialog box. Rich parameters allow users to adjust conversion settings to best meet their needs.

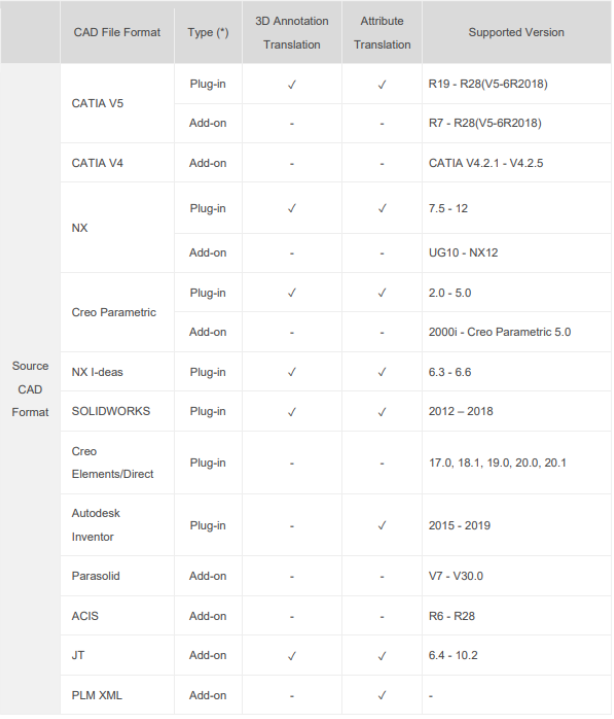

Export CAD format：

Import CAD format

Plug-in: This is a plug-in software embedded into CAD and requires a license for CAD
